Technical characters:
1.The movement principle of planet gears.
2.Stable, the weight of tray is distributed to the base plate through hollow shaft, cone bearing and three supporting legs
3.Exclusive reducer and frequency converter regulating, there is one for each ring gear, upper plate, lower plate and sun gear, and the machine starts and stops smoothly.
4.Programmable, it is easy to program on interface and it can add 100 programs.
5.* Pressure detecting mechanism, automatically detect the pressure of work piece.
6.Self-lock cylinder, when upper plate goes up to upper limit, hook will catch it for ensuring operator’s safety.
7.PLC controlling, which it is flexible and reliable.
8.Touch screen, it is convenient to show alert information and state. Besides, the interface is friendly and the information is huge.
*Remark: Pressure detecting mechanism is optional.
- Place of Origin: china
- Brand Name: yuhuan
- Model Number: YH2M8436A1

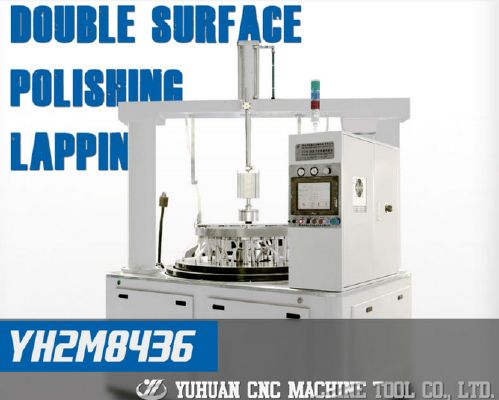

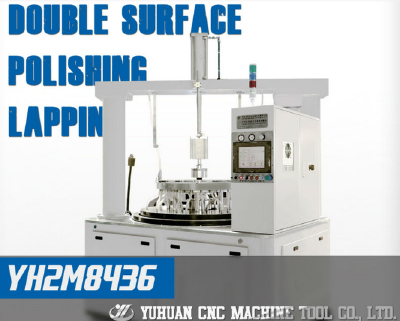

YH2M8436 High-precise Vertical Double Surface Lapping Machine | ||
Item | Unit | Spec. |
Upper plate size (OD * ID * T) | mm | Φ1148×Φ355×45 |
Lower plate size (OD * ID * T) | mm | Φ1148×Φ355×50 |
Size of dressing wheel | mm | OD Φ427.6mm, Number of teeth Z=200, DP=12 |
Qty of carrier | 5pieces, the thickness according to workpiece | |
Max size of workpiece | mm | Dia. 360 |
Precision of workpiece | mm | Surface plainness and parallelism of single one ≤0.008mm; |
Roughness of workpiece | ≤Ra0.15μm, Polishing Ra0.125μm | |
Rotational speed of lower plate/upper plate | um | 10-60rpm (Stepless) / 3-16rpm (Stepless) |
Rotational speed of sun gear/ring gear | 3-30rpm (Stepless)/ 3-30rpm (Stepless) | |
Overall dimension (L * W * H) | mm | 2050×1500×2700 |
Total weight | kg | 4500 |
