- Place of Origin: china
- Brand Name: yuhuan

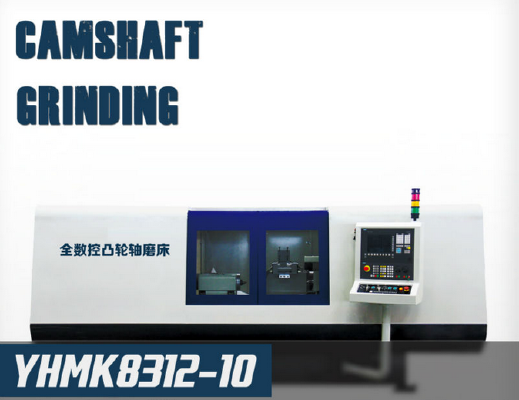

- Model Number: YHMK8312-10
Specifications
It is mainly applied to grinding the camshaft of engines in the automobile, motorcycle and other internal combustion.
Technical characters:
Improved on the basis of former simple numerical control and three-coordinate camshaft grinder. It combines the profile grinding, the CBN wheel and numerical control to get high power grinding for the CBN wheel. Its processing efficiency is much higher than conventional one 4 - 5 times, and of better stability, easier maintenance and higher automatization, taking the lead position in Chinese market.
1. Adopt standard numerical controlsystem, four axes control.
2. Adopt electric spindle which issupported by hydro-dynamic-static hybrid bearings with high rigidity and precision.
3. Slide for wheelhead uses wearable plastic with static pressure unloading effect.
4. Adopt CBN wheel grinding. Dressing system adopts roller diamond driven by electric spindle.
- Place of Origin: china
- Brand Name: yuhuan
- Model Number: YHMK8312-10
CNC Camshaft Grinder/CNC camshaft grinding machine | ||
Item | Unit | Specs |
Maximum diameter of Workpiece | mm | Φ20 - Φ120 |
Maximum length of Workpiece | mm | 800 |
The maximum lift | mm | 20 |
Maximum Weight of Workpiece | kg | 50 |
Grinding wheel diameter | mm | Φ500×B ×203 |
Wheel Maximum line speed | m/s | 80 |
Total power | kw | 50 |
Base circle run-out error | mm | ±0.02 |
Lift error of cam | mm | ±0.05 |
Neighboring lift error of cam per degree | mm/° | 0.01 |
Cam phase angle error | mm | ±15' |
Surface roughness | µm | ≤Ra0.4 |
Machine weight | kg | 12000 |
Machine size (L*W*H) | mm | 4325×2155×1900 |
